Super Elastic Shape Memory Alloy Nickel Wire For Fishing
Superelastic Nitinol
This product form takes advantage of the stress-induced martensitic transformation to achieve incredible amounts of flexibility, strain recovery, and kink resistance. Nitinol behaves superelastically if the Active A(f) temperature is below its use temperature. Applications that are intended to be superelastic at room temperature are generally produced with an Active A(f) temperatures below room temperature in the range of 0 C to 20 C. A superelastic material will remain superelastic up to a temperature from the Active A(f) to a temperature about 50 C above Active A(f). Therefore a material with an Active A(f) of about 15 C will exhibit good superelasticity up to about 65 C. Please contact Seabird for more information regarding the use of Alloys.
| The Current production Line |
| Chemical element | Af range | Available production Line | Usage | Sample |
| Nickel 55% Titanium 45% | 0℃to 100℃ | Rod&wire,Plate&sheet,Strip&foil | Medical&Industry | Medical&Industry |
| Nickel 55% +V +Ti | Subzero 30℃ to -5 ℃ | Rod&wire,Plate&sheet | industry | On stock
(limitedspecification) |
| Nickel 55% +Fe +Ti |
| Nickel 55%+Cr +Ti |
| Nickel 55% +Hf +Ti | Above 100C | ingot | industry | updating |
| Specification (mm) | Nitinol Superelastic wire | Typical Medical industry Application |
| UTS (Mpa) | Elongation % | UpperPlateau Stress Mpa | Permanent Set after 6% strain % | Active AF |
| 0.1-0.3mm | ≥1100 | ≥15 | ≥480 | <0.5 | Subzero20~100 | Guide wires Shape set parts ,Orthodontic Files .Arch wire . fishing wire .bra frames wire .glasses wire .spring wire |
| 0.3~0.6mm | ≥920 | ≥15 | ≥440 | <0.5 |
| 0.6~3.0mm | ≥850 | ≥15 | ≥440 | <0.5 |
Application
The nitinol material is widely used for medical application and industry application .
medical application such as : Guide wires Shape set parts ,Orthodontic Files .Arch wire .
industry application such as : fishing wire .bra frames wire .glasses wire.
How Does Nitinol Work?
Nitinol Shape Memory Alloys undergo a phase transformation in their crystal structure when cooled from the stronger, high temperature from (Austenite) to the weaker, low temperature from (Martensite). This inherent phase transformation is the basis for the unique properties of these alloys - in particular, Shape Memory and Superelasticity.
Products Show
•Chemical composition: Reference ASTM F2063-2012 or GB 24627-2009;
• Af temperature range: -40C~90C

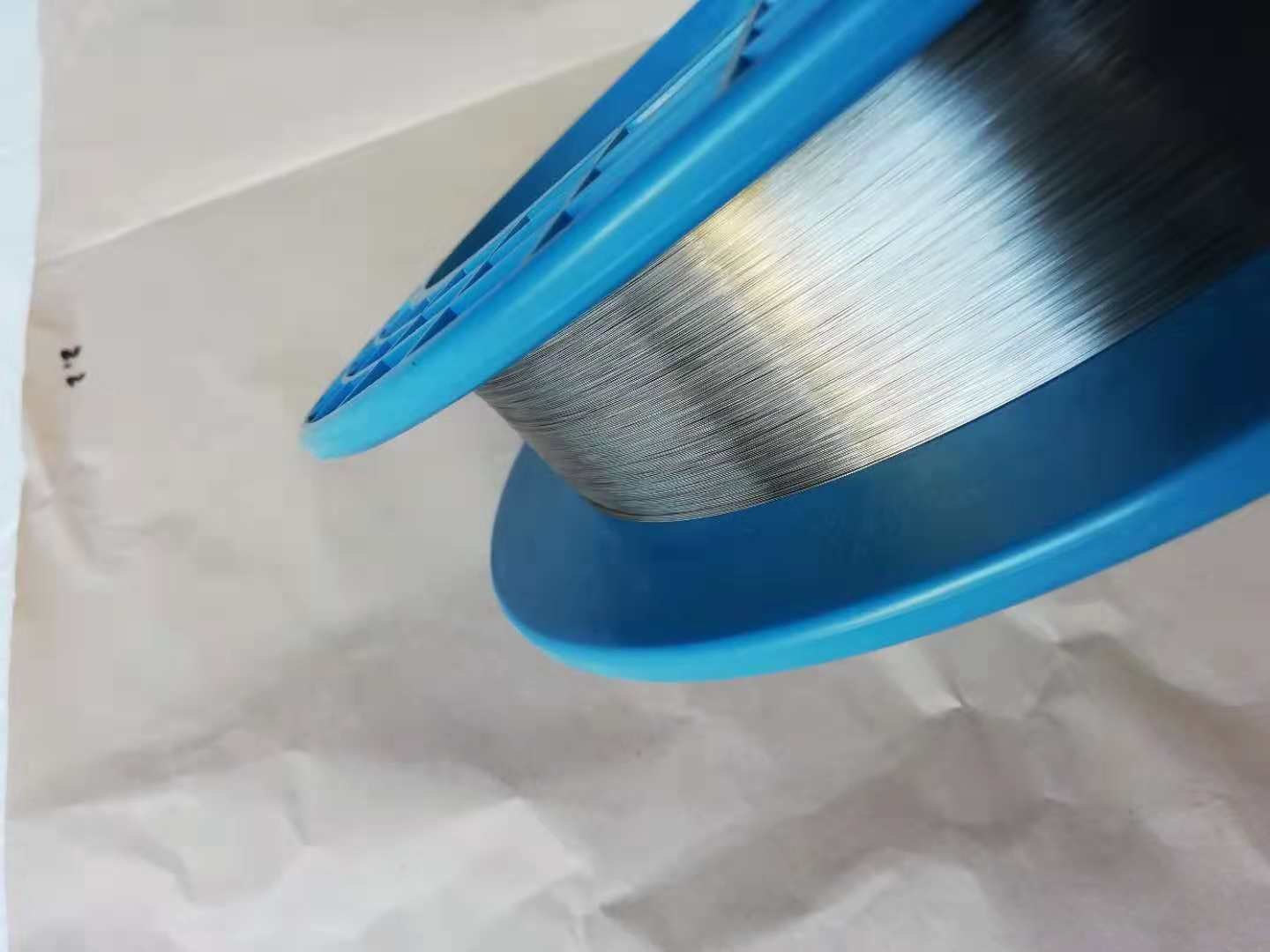

Nitinol Wire
· Diameter 0.6mm
· Surface State Options:
• Oxide surface(including Black oxide, Blue oxide, Amber oxide)
• Etched surface
• Polished surface
• Ground surface
